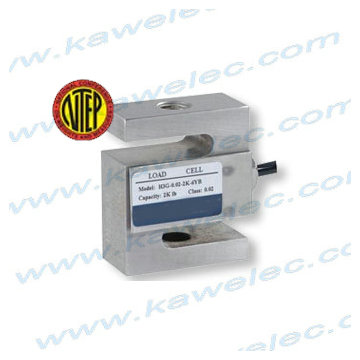

S-Type Load Cells KH3G
Category: Load Cells >> S-type Load Cells >>

S  Type  Load  Cell  50kg~7.5t,
SS, IP67, C3  load  cell
High  Sensitivity,  High  Accuracy

Features of KH3G S Type Load Cell :
1,Stainless steel IP67 “S” type load cell
2,Tension and compression applications
3,Suitable for hanging, hopper and other weighing devices
4, Also available in imperial capacities and dimensions
　 　 　 　 　 　
Capacity of KH3G S Type Load Cell:
50kg C3 S type Load Cell KH3G
100kg C3 S typeLoad Cell KH3G
250kg C3 S type Load Cell KH3G
500kg C3 S type Load Cell KH3G
1.0t C3 S type Load Cell KH3G
2.5t C3 S typeLoad Cell KH3G
5.0t C3  S type Load Cell KH3G
7.5t C3 S type Load Cell KH3G
　 　 　 　 　 　
Specification  of KH3G S Type Load Cell:
Accuracy  Class 　 OIML R60 C3 C3 N3 N10
Output sensitivity(=FS) mV/V 3.0 ± 0.008
Maximum Capacity(Emax)
 t 0.05, 0.1, 0.25 0.5,1,2.5,5,7.5 　 　
Ib 　 50,75,100,150,200,250,300,500
Kib 0.75, 1, 1.5, 2, 2.5, 5, 10, 15, 20
Maximum number of load cell intervals(Nlc) 　 3000 5000 10000
Ratio of minimum LC verification interval Y=Emax/Vmin 　 15000 14000 15000 14000
Combined Error %FS ≤ ± 0.0200 ≤ ± 0.026 ≤ ± 0.050
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ＜±1.0%
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 430±60
Terminal resistance, output Ω 351 ± 2
Insulation impedance MΩ ≥5000(at 50VDC)
Temperature range, compensated ℃  -10 ~ +40
Temperature range, operation ℃  -35 ~ +65
Element material 　 Alloy steel
Ingress Protection (according to EN60529) 　 IP67
　 　 　 　 　

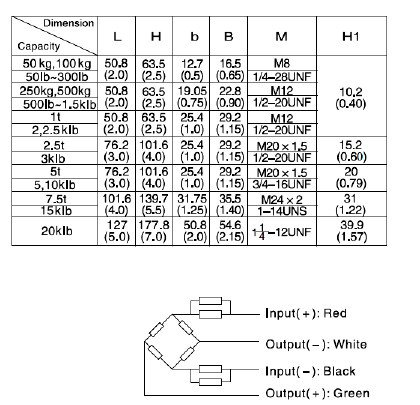

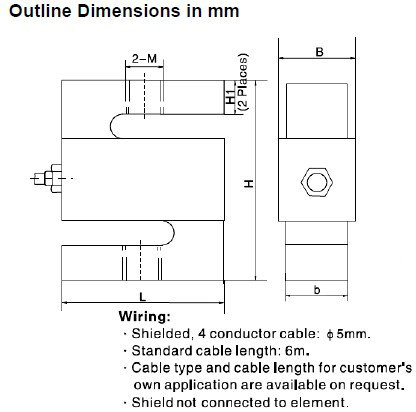

Wiring of KH3G S Type Load Cell:
Shielded, 4 conductor cable: Ø5mm.
Standard cable length is 6m
Shield is not connected to element
Different cable type and length are available on customer request.
　 　 　 　 　 　
Application of KH3G S Type Load Cell:
Suitable for hanging, hopper and other weighing devices

Specification  of KH3G S Type Load Cell:
Accuracy  Class 　 OIML R60 C3 C3 N3 N10
Output sensitivity(=FS) mV/V 3.0 ± 0.008
Maximum Capacity(Emax)
 t 0.05, 0.1, 0.25 0.5,1,2.5,5,7.5 　 　
Ib 　 50,75,100,150,200,250,300,500
Kib 0.75, 1, 1.5, 2, 2.5, 5, 10, 15, 20
Maximum number of load cell intervals(Nlc) 　 3000 5000 10000
Ratio of minimum LC verification interval Y=Emax/Vmin 　 15000 14000 15000 14000
Combined Error %FS ≤ ± 0.0200 ≤ ± 0.026 ≤ ± 0.050
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ＜±1.0%
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 430±60
Terminal resistance, output Ω 351 ± 2
Insulation impedance MΩ ≥5000(at 50VDC)
Temperature range, compensated ℃  -10 ~ +40
Temperature range, operation ℃  -35 ~ +65
Element material 　 Alloy steel
Ingress Protection (according to EN60529) 　 IP67
