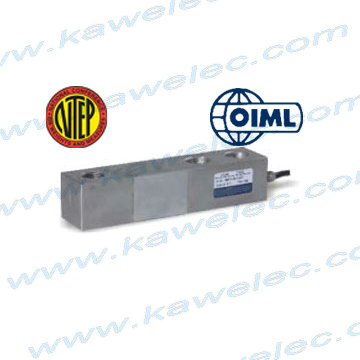

Features of H8C Shear Beam Load Cell :
|
|
1,Alloy steel IP67 shear beam load cell
|
|
2,Adhesive sealed
|
|
3,Suitable for platform weighing, bed weighing, etcetera
|
|
4,High accuracy, high reliability
|
|
|
|
|
|
|
|
|
Capacity of H8C Shear Beam Load Cell:
|
|
500kg C3 Shear Beam Load Cell H8C
|
|
1t C3 Shear Beam Load Cell H8C
|
|
1.5t C3 Shear Beam Load Cell H8C
|
|
2t C3 Shear Beam Load Cell H8C
|
|
2.5t C3 Shear Beam Load Cell H8C
|
|
3t C3 Shear Beam Load Cell H8C
|
|
3.5t C3 Shear Beam Load Cell H8C
|
|
10t C3 Shear Beam Load Cell H8C
|
|
|
|
|
|
|
|
|
Specification of H8C Shear Beam Load Cell:
|
|
Accuracy
|
|
OIML R60 C3
|
|
Output sensitivity(=FS)
|
mV/V
|
3.0±0.003
|
|
Maximum Capacity(Emax)
|
kg
|
0.5, 1, 1.5, 2, 2.5, 3, 5, 101
|
|
Maximum number of load cell intervals(Nlc)
|
|
3000
|
|
Ratio of minimum LC verification interval Y=Emax/Vmin
|
|
0.5 - 2.5t: 10000 or 15000
|
3 and 5t: 7000
|
10t: 4000
|
|
Combined Error
|
%FS
|
≦±0.0200
|
|
Safe overload
|
of Emax
|
1.5
|
|
Ultimate overload
|
of Emax
|
3
|
|
Zero Balance
|
of FS
|
＜±1.0%
|
|
Excitation, recommended voltage
|
V
|
5 ~ 12
|
|
Excitation maximum
|
V
|
18
|
|
Terminal resistance, input
|
Ω
|
350 ± 3.5
|
|
Terminal resistance, output
|
Ω
|
351 ± 2
|
|
Insulation impedance
|
MΩ
|
≥ 5000 ( at 50VDC )
|
|
Temperature range, compensated
|
℃
|
-10 ~ +40
|
|
Temperature range, operation
|
℃
|
-35 ~ +65
|
|
Element material
|
|
Alloy steel
|
|
Ingress Protection (according to EN60529)
|
|
IP67
|
|
Recommended torque on fixation bolts
|
Nm
|
M12: 100 M18: 200 M24: 700
|
|
|
|
|
|
|
|
|

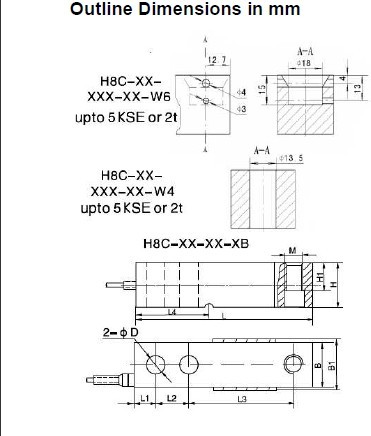

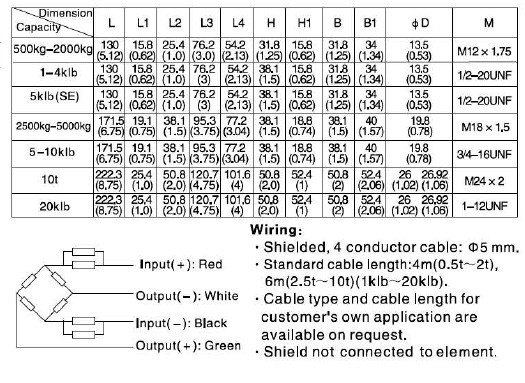

Wiring of H8C Shear Beam Load Cell:
|
|
Shielded, 6 conductor cable: Ø5mm.
|
|
Standard cable length is 4m/6m
|
|
Shield is not connected to element
|
|
Different cable type and length are available on customer request.
|
|
|
|
|
|
|
|
|
Application of H8C Shear Beam Load Cell:
|
|
Suitable for platform weighing, bed weighing, etcetera
|
