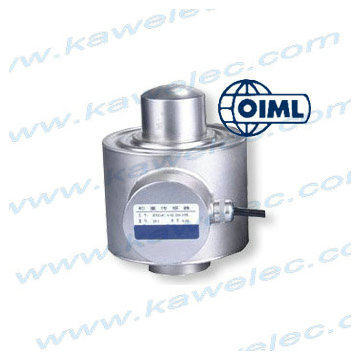

Column Type Load Cell KBM14C
Category: Load Cells >> Column Type Load Cells >>
Compression  Load   Cell   0.5t~50t,
Stainless  steel,  IP68  load  cell,
High  Sensitivity,  High  Accuracy

Features of KBM14C Column Type Load Cell :
 1,Stainless steel IP68 compression load cell
 2,Hermetically closed
 3,Suitable for vehicle and hopper scales and vehicle testing facilities
 4,Protection against lightning surges

Capacity of KBM14C Column Type Load Cell:
0.5t C32  Column Type Load Cell KBM14C
1t C32  Column Type Load Cell KBM14C
2t C32  Column Type Load Cell KBM14C
3t C32  Column Type Load Cell KBM14C
5t C32  Column Type Load Cell KBM14C
10t C3   Column Type Load Cell KBM14C
10t  C4   Column Type Load Cell KBM14C
20t C3  Column Type Load Cell KBM14C
20t C4  Column Type Load Cell KBM14C
25t C3  Column Type Load Cell KBM14C
25t C4  Column Type Load Cell KBM14C
30t C3   Column Type Load Cell KBM14C
30t C4  Column Type Load Cell KBM14C
40t C3  Column Type Load Cell KBM14C
40t C4  Column Type Load Cell KBM14C
50t C3  Column Type Load Cell KBM14C
50t C4  Column Type Load Cell KBM14C

Specification  of KBM14C Column Type Load Cell:
Accuracy     C3   OIML R60 C3   OIML R60 C4
Output sensitivity(=FS) mV/V 2.0±0.002
Maximum Capacity(Emax) t 0,5, 1, 2, 3, 5 10, 20, 25, 30, 40, 50
Maximum number of load cell intervals(Nlc)   3000 4000
Ratio of minimum LC verification interval Y=Emax/Vmin   10000 15000
Combined Error %FS ≤ ± 0.023 ≤ ± 0.0174
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ≤ ± 1.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 700 ± 7
Terminal resistance, output Ω 703± 4
Insulation impedance 5000(at 50VDC)
Temperature range, compensated  -10 ~ +40
Temperature range, operation  -35 ~ +65
Element material   Stainless steel
Ingress Protection (according to EN60529)   IP68
Recommended torque on fixation bolts Nm M12:100 M18:200

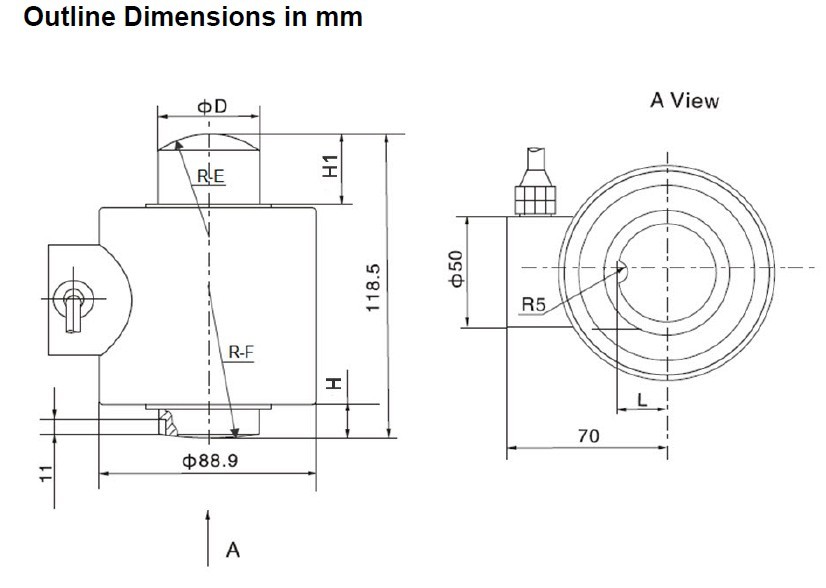

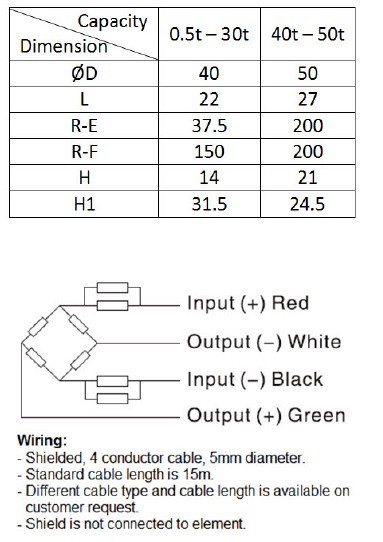

Wiring of KBM14C Column Type Load Cell:
Shielded, 4 conductor cable: Ø5mm.
Standard cable length is 15m
Shield is not connected to element
Different cable type and length are available on customer request.

Application of KBM14C Column Type Load Cell:
Suitable for vehicle and hopper scales and vehicle testing facilities

Specification  of KBM14C Column Type Load Cell:
Accuracy     C3   OIML R60 C3   OIML R60 C4
Output sensitivity(=FS) mV/V 2.0±0.002
Maximum Capacity(Emax) t 0,5, 1, 2, 3, 5 10, 20, 25, 30, 40, 50
Maximum number of load cell intervals(Nlc)   3000 4000
Ratio of minimum LC verification interval Y=Emax/Vmin   10000 15000
Combined Error %FS ≤ ± 0.023 ≤ ± 0.0174
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ≤ ± 1.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 700 ± 7
Terminal resistance, output Ω 703± 4
Insulation impedance 5000(at 50VDC)
Temperature range, compensated  -10 ~ +40
Temperature range, operation  -35 ~ +65
Element material   Stainless steel
Ingress Protection (according to EN60529)   IP68
Recommended torque on fixation bolts Nm M12:100 M18:200

Application of KBM14C Column Type Load Cell:
Suitable for vehicle and hopper scales and vehicle testing facilities
Application of KBM14C Column Type Load Cell:
Suitable for vehicle and hopper scales and vehicle testing facilities
